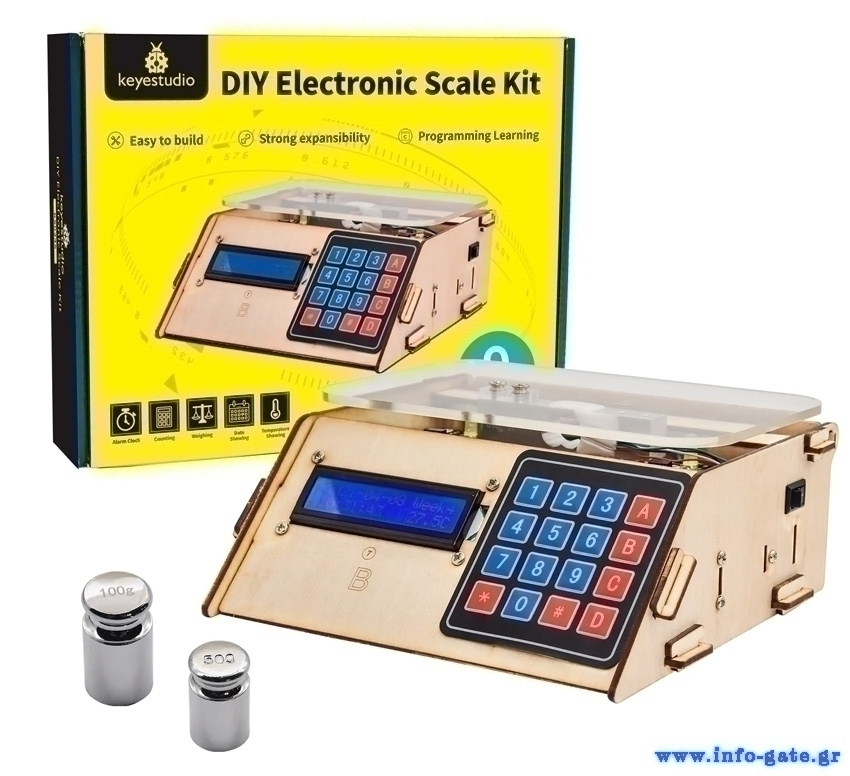

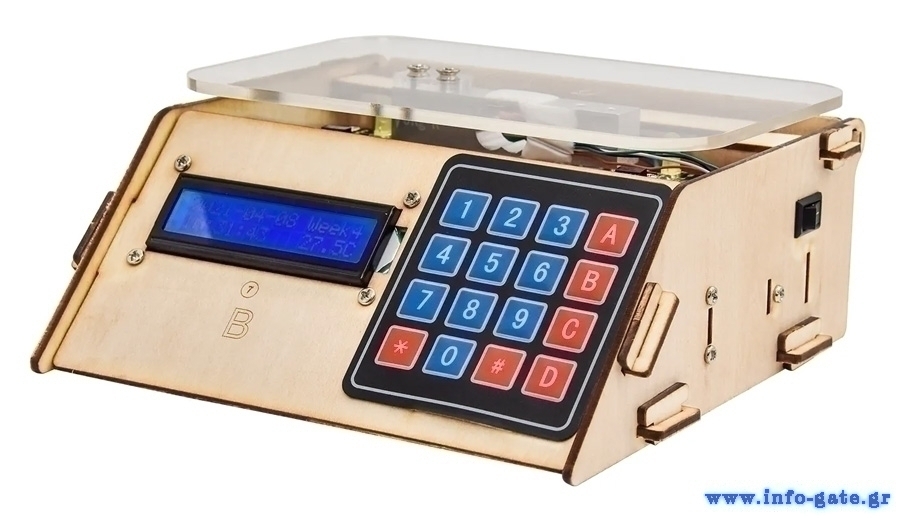

KEYESTUDIO Electronic Scale Kit KS0345 για Arduino

KEYESTUDIO Electronic Scale Kit KS0345 για Arduino

Με το Electronic Scale Kit της Keyestudio σας δίνετε η δυνατότητα να κατασκευάσετε την δική σας ηλεκτρονική ζυγαριά και να εκπαιδευτείτε στον προγραμματισμό μέσω της ολοκλήρωσης πολλών δημιουργικών projects. Διαθέτει λειτουργίες ξυπνητήρι, αριθμομηχανή, ζυγαριά, ένδειξη ημερομηνίας, ένδειξη θερμοκρασίας.

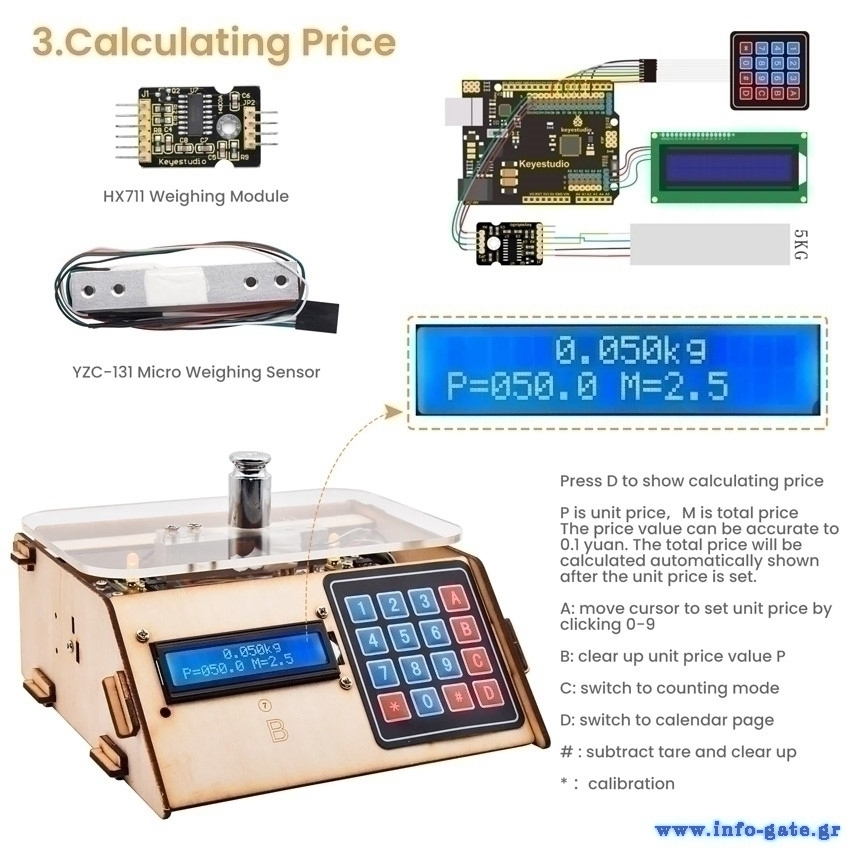

-Multi-purpose function: key input and control, 1602 display, weighing, counting, calculating price, alarm clock, temperature & time display
-Easy to build: Slot connection and without soldering circuit
-Novel style: Adopt strong wood board, acrylic board, RGB and LCD 1602 modules
-High extension: preserve IIC, UART, SPI ports,and extend other sensors and modules
-Basic programming learning: Use C language and code

Kit projects
Project 1: LED Blink
Project 2: Adjust LED Brightness
Project 3: 1602 LCD Display Module
Project 4: Power Amplifier Module
Project 5: 4*4 Membrane Keypad
Project 6: DS3231 Clock Module
Project 7: Install Electronic Scale
Project 8: HX711 Weighing Module & YZC-131 Weighing Sensor
Project 9: Multi-purpose Electronic Scale

Τεχνικά χαρακτηριστικά
Input Voltage: 7-12V
Working Voltage: 5V
Working Current: 100mA
Maximum consumption power: 1.5W

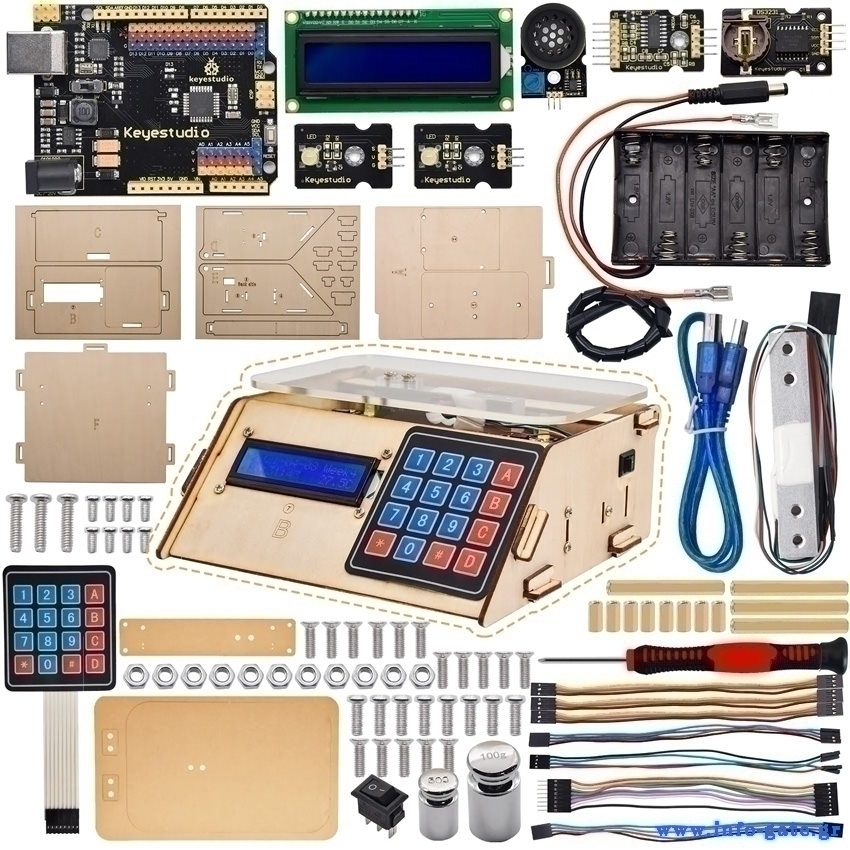

Περιεχόμενα συσκευασίας
Keyestudio Main Board
4pcs Wooden Boards
2pcs Acrylic Boar
Keyestudio HX711 Weighing Mod
Micro Weighing Sensor
4*4 Membrane Keypad
Keyestudio I2C1602 LCD Modu
Keyestudio DS3231 Clock Modu
keyestudio Power Amplifier Modu
2x Keyestudio Yellow LED Module
6-slot AA Battery Holder
3-pin Rocket Switch
50g Balance Wight
8x Dual-pass M3*8MM Copper Pillar
4x Dual-pass M3*40MM Copper Pillar
8x M3*6MM Round Head Screws
13x M3*8MM Round Head Screw
3x M3*10MM Round Head Screws
11x M3*6MM Flat Head Screws
5x M4*12MM Flat Head Screw
11x M3 Nickel Plated Nuts
3.0*40MM Screwdriver
AM/BM OD:5.0 L=50cm USB Cable
8MM Winding Pipe
3x 3P F-F Dupont Line
4P-1P F-F Black/Red/Blue/Green Dupont Line
4P-1P F-F Black/Green/Blue/Red Dupont Line
4P Dupont Line
8P M-F Dupont Line
6x 50*82*0.2MM Plastic Bag
63*106*0.2MM Plastic Bag
8x 4CC 4*6CM Plastic Bag
4CC 10*15CM Plastic Bag
